Stand build guide
S48-24|Cabinet stand for 48 × 24 inch enclosures
Fits 48″ × 24″ enclosures · 50″ × 26″ top · approximately 30 3⁄4″ tall
Build a wooden stand with a full support top and a useful cabinet below. Follow the labeled cuts, illustrated steps and interactive model from bare frame to finished cabinet.
Researched construction plan. Digitally checked; not physically built or load-certified.
At a glance
Enclosure footprint
48″ × 24″
Cabinet access
Two hinged doors
Construction
2 × 4 frame + plywood
Door hardware
Concealed Blum hinges
Plan ahead
Settle these before you buy anything. They decide where the stand can go and who needs to be there on build day.
1
Measure the real enclosure
Check its required support surface, finished weight and ventilation clearance before buying wood.
2
Bring the right help
The cabinet and enclosure are heavy. Arrange helpers and a clear route before lifting.
3
Leave room for curing
Finish all exposed wood and allow the product label’s full cure before loading.
Before you start
Gather the tools, tick off the shopping as it arrives and cut every part from the list below. The diagrams show where each piece comes from on the sheet or board.
Tools and protection
Cut and mark
Supported circular or track saw, straightedge and clamps
Jigsaw for shelf notches
Tape measure, square, level and pencil
Drill and assemble
Drill/driver and the connector screw bits
35 mm hinge boring bit with a positive 13 mm depth stop
3⁄32″, 7⁄64″, 9⁄64″, 11⁄64″ and 3⁄16″ drill bits; countersink and depth stops
Wood stud finder, hand screwdriver, backing scraps and 1⁄8″ spacers
Protection
Eye and hearing protection
Dust extraction and suitable respiratory protection while cutting and sanding
Gloves for handling sharp metal; remove them around rotating cutting tools
Shopping list
0 of 17 ticked
Some shopping links may earn us a commission. Quantities are listed here; a retailer cart or collection does not preset them. Verify the exact model before ordering. Stock and prices can change.
Wood
Dry, untreated, actual 1 1⁄2″ × 3 1⁄2″. Confirm the Southern Pine grade stamp. View item ↗
APA Group 1. Top, shelf and doors. Keep the top and shelf grain across the stand width. View item ↗
Sides, full back and front trim. Keep the full back in the finished stand. View item ↗
Actual 1⁄4″ × 1 1⁄2″. Cut the 16 spacers from the supplied layout. View item ↗
Front left vertical spacer; Front right vertical spacer; Back left vertical spacer; Back right vertical spacer; Left side front vertical spacer; Left side back vertical spacer; Right side front vertical spacer; Right side back vertical spacer
SPFLH, SPFUH, SPBLH, SPBUH
4
32″813 mm
Front lower rail spacer; Front upper rail spacer; Back lower rail spacer; Back upper rail spacer
SPLLH, SPLUH, SPRLH, SPRUH
4
8″203 mm
Left lower end-rail spacer; Left upper end-rail spacer; Right lower end-rail spacer; Right upper end-rail spacer
Cutting diagrams
Click any diagram to open it full size.
Allow 1⁄8″ between cuts. Keep the top and shelf grain across the stand width.Allow 1⁄8″ between cuts. Check actual sheet size before cutting.Cut matching rails together. Allow at least 1⁄8″ for each saw cut; retain the offcuts for the hinge trial.Two screws per strip, at one-quarter and three-quarters of its length. Keep strips on bare wood.The smaller shelf blank leaves 1⁄8″ clearance at the frame and posts. Check fit before fastening.

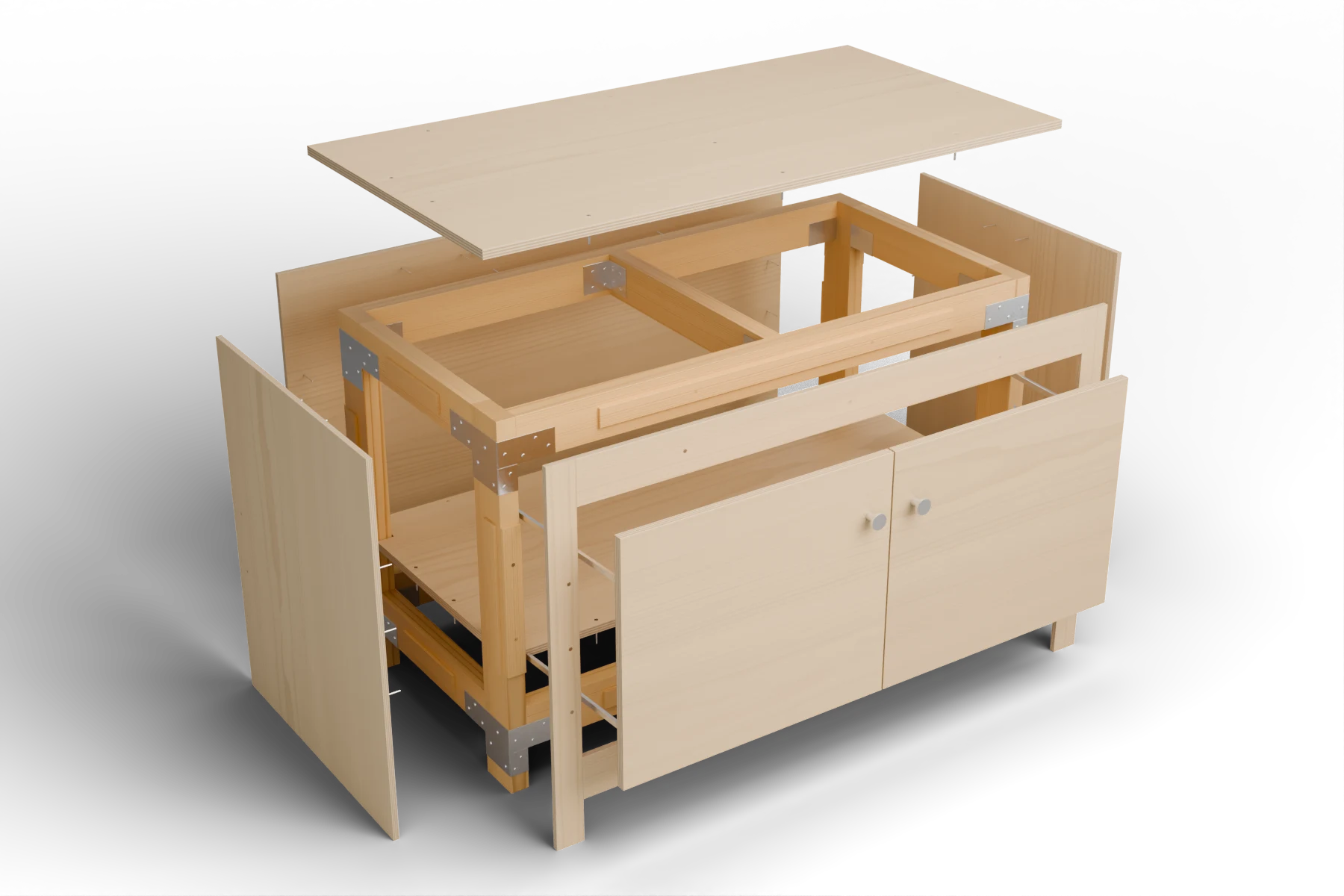

Every part, pulled apart
Use this view to learn the names before you start. Each step card lists its parts again, and you can tap a part name to see its cut size.
Parts separated to show how the cabinet fits around the frame.
Continuous posts and two rail levels (P1–P4, LF–UC)
Full top and notched shelf (TOP, SH)
Sides, back and front trim (SL, SR, BK, FL, FR, FLR, FUR)
Two inset cabinet doors (D1, D2)
Spacers and hardware (See the cut and fastener lists)
Build it step by step
Fifteen illustrated steps: cut the parts, assemble the frame and cabinet, finish the wood, then fit the doors and restraints. Tick each step off as you go; the 3D model follows along.
ASteps 1 to 3
Plan and cut
Step1
Phase A · Step 1 of 15
Step 1: Choose the location and check the enclosure
Allow room for both doors to swing open.
Allow room for both doors to swing open.
Caution
Do not use this plan for an aquarium, a water-filled basin, stacked enclosures, concentrated loads on feet, or as a seat or climbing step.
This stand is for one flat-bottomed 48″ × 24″ (1219 × 610 mm) enclosure. The top is 50″ × 26″ (1270 × 660 mm). Keep the enclosure centered: its outer edges sit 1″ (25 mm) in from the tabletop edges.
Add the empty enclosure, substrate, furnishings and equipment weights before buying materials. The planning ceiling is 300 lb (136 kg) on top and 50 lb (23 kg) on the lower shelf, spread evenly. These are calculated limits for the stated materials and layout, not a physically tested load rating.
Choose a dry indoor location with a solid, level floor and accessible wood wall studs. Leave the enclosure’s own ventilation and cable clearances. Keep at least 30″ (762 mm) clear in front for access.
Use a helper when handling the stand or enclosure. Assemble and anchor the empty stand before placing the enclosure. Secure the enclosure separately as its own guide requires.
Check before you move on
The enclosure has a continuous flat base, the total planned weight fits the scope, and the wall location accepts both restraints.
Step2
Phase A · Step 2 of 15
Step 2: Check the boards and try one hinge
A small offcut test prevents expensive door mistakes.
A small offcut test prevents expensive door mistakes.
Use straight, dry, untreated No. 2 or better Southern Pine 2 × 4s. Their finished cross-section must be 1 1⁄2″ × 3 1⁄2″ (38 × 89 mm). Reject split, twisted or damaged pieces at the joints.
Check the APA Group 1 grade stamp on the sanded Southern Pine plywood. Buy 23⁄32-inch thickness category (CAT) for the top, shelf and doors, and 15⁄32-inch CAT for the cabinet covering. The actual sheets are slightly thinner than those labels; measure the sheets you receive.
Make a small practice corner: stand a 2 × 4 offcut upright, then clamp a 1⁄4″ spacer and cabinet-covering offcut onto its 1 1⁄2″-wide front face. Hold a door offcut beside the post with its front flush with the covering. The hinge plate goes on the post’s inside face; the cup goes in the back of the door. Fit one Blum 71B3750 hinge with a 173L6100 plate, using the drilling sizes in steps 11 and 12.
Set a 1⁄8″ (3 mm) gap around the trial door. Open it fully, check that its edge clears the trim, and confirm that the screw tips stay inside the wood. Record the successful jig settings.
Check before you move on
The trial hinge closes flush, opens freely and has no exposed screw points.
Step3
Phase A · Step 3 of 15
Step 3: Cut and label every wooden part
The cutting diagrams give a length for every board.
The cutting diagrams give a length for every board.
Use the marked positions and cut labels.
Use the marked positions and cut labels.
Use the marked positions and cut labels.
Support sheets across their full area. Use a straight guide, eye and hearing protection, and suitable dust extraction. Keep hands away from the cut and support the offcut so it cannot pinch the blade.
Cut four posts at 30″ (762 mm), four long rails at 45″ (1143 mm), four end rails at 17″ (432 mm), and two center supports at 21″ (533 mm). Do not notch or splice the posts.
Follow the sheet diagrams for the top, shelf, sides, back, trim and two doors. Keep the top and shelf’s face grain running across the stand’s width. Leave at least 1⁄8″ (3 mm) between adjacent cuts for the saw blade; adjust for your blade if wider.
Cut the shelf’s four corner notches to 1 1⁄2″ × 3 1⁄2″ (38 × 89 mm). The shelf blank already includes 1⁄8″ perimeter clearance. Label every part with its ID on masking tape. Smooth the edges without rounding the hinge reference edges.
Check before you move on
Matching rails and doors are identical. Every part is labeled and the top and shelf grain directions match the drawing.
BSteps 4 to 10
Build the cabinet
Step4
Phase B · Step 4 of 15

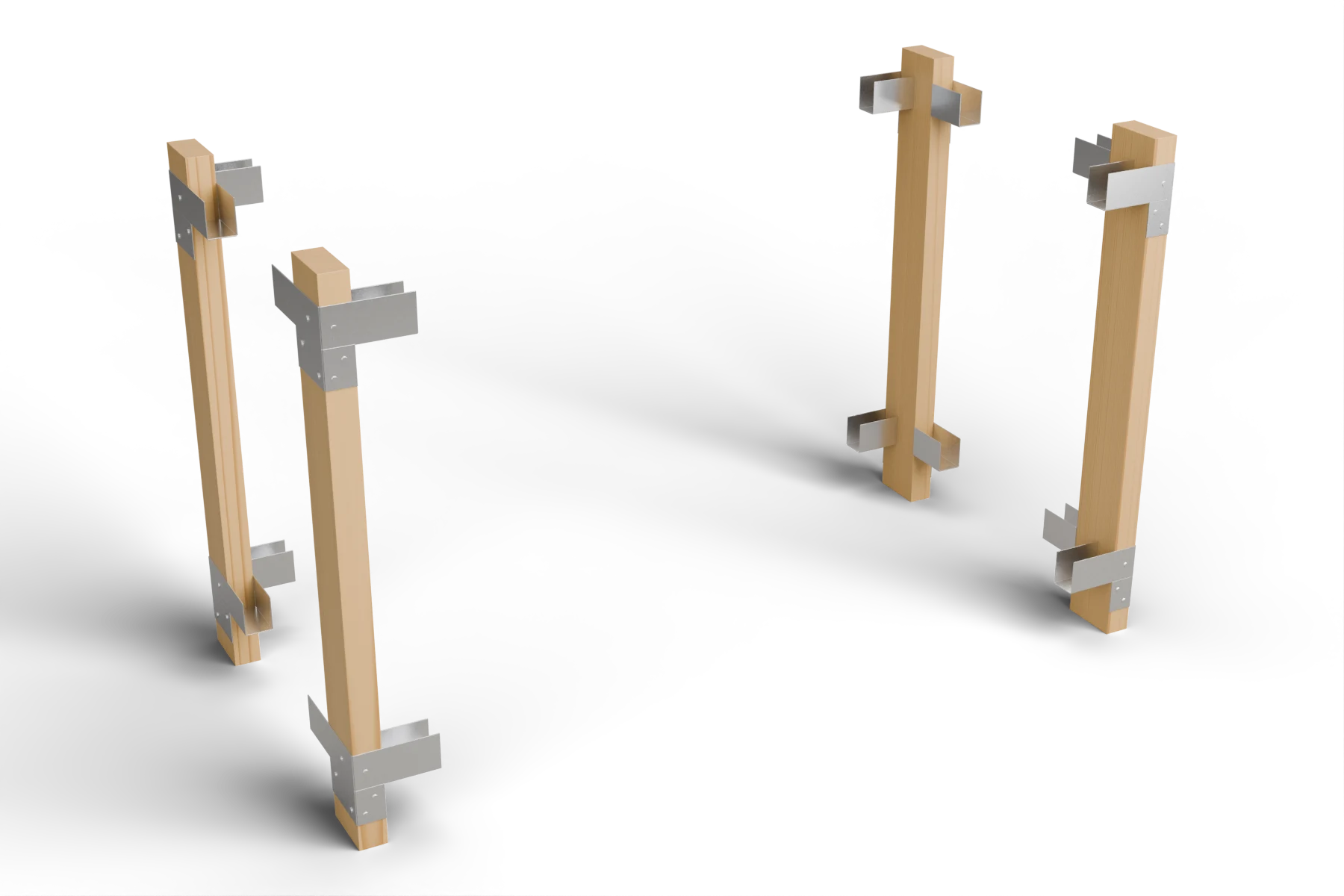

Step 4: Attach the corner connectors to the posts
The four posts remain one piece from top to floor.
The four posts remain one piece from top to floor.
Parts
Continuous corner post 1 (P1) · Cut 30″ long · 2 × 4 stock
Continuous corner post 2 (P2) · Cut 30″ long · 2 × 4 stock
Continuous corner post 3 (P3) · Cut 30″ long · 2 × 4 stock
Continuous corner post 4 (P4) · Cut 30″ long · 2 × 4 stock
Lay the posts side by side and mark from the bottom ends. The lower rail undersides sit 3 1⁄2″ (89 mm) above the floor; upper rail undersides sit 26 1⁄2″ (673 mm) above it.
Use an actual rail offcut to position each RTC2Z connector: its seat supports the marked underside, and the upper rail’s top must finish flush with the post top. Mirror the connectors for the four corners as drawn.
Attach two connectors to each post with the WBSK kit’s screws. Install all six post screws per connector, using the factory holes. Drive the heads snug against the metal without stripping the wood.
Check before you move on
Eight connectors are fitted, with 48 kit screws in the posts. Upper rails will finish at the same height as all four post tops.
Step5
Phase B · Step 5 of 15

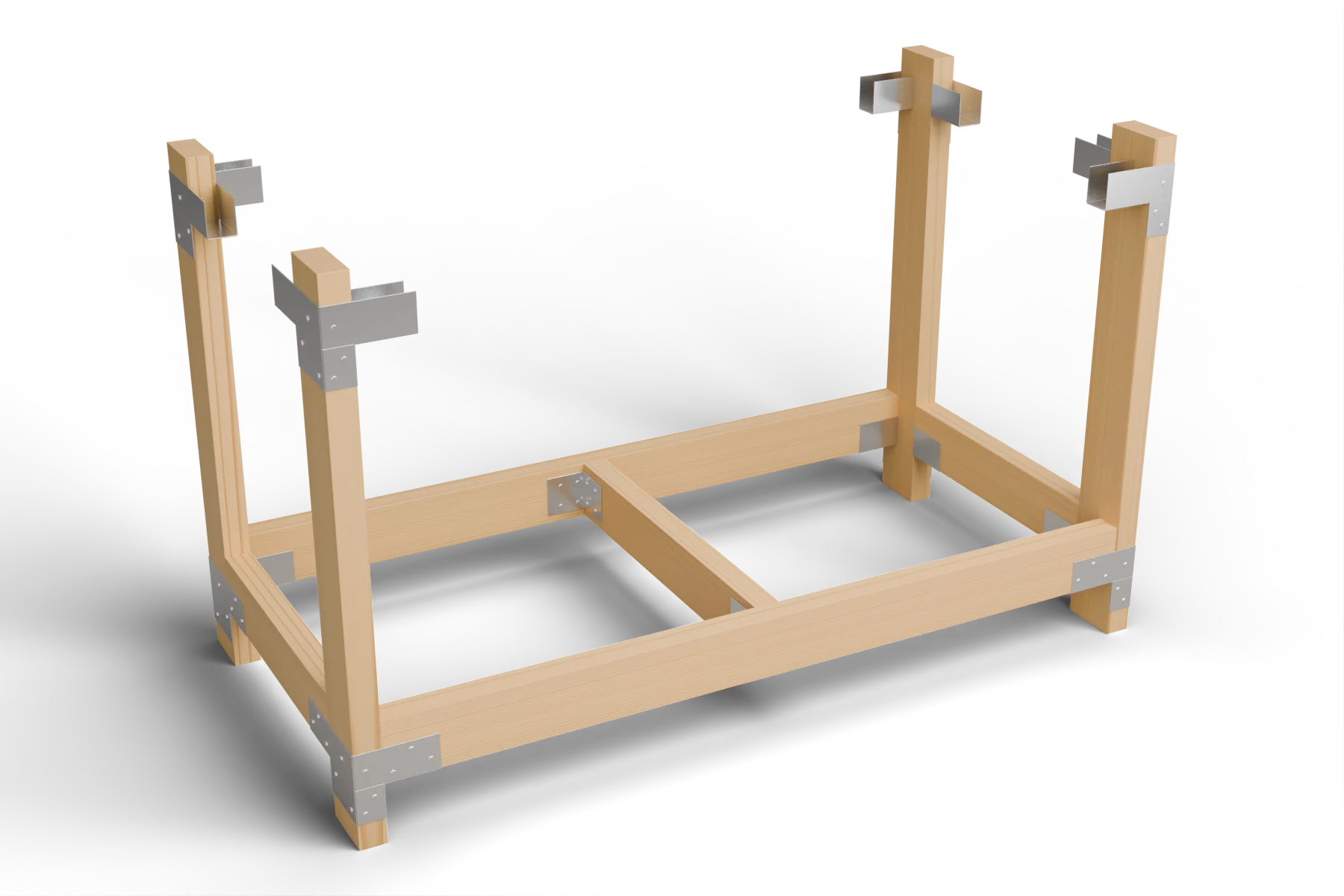

Step 5: Build the lower frame
The lower shelf rests on the rails and center support.
The lower shelf rests on the rails and center support.
Parts
Lower front rail (LF) · Cut 45″ long · 2 × 4 stock
Lower back rail (LB) · Cut 45″ long · 2 × 4 stock
Lower left end rail (LL) · Cut 17″ long · 2 × 4 stock
Lower right end rail (LR) · Cut 17″ long · 2 × 4 stock
Lower center support (LC) · Cut 21″ long · 2 × 4 stock
Join the posts with the two 45″ long rails at front and back and the two 17″ end rails at the sides. Stand the rails on their narrow edges, 3 1⁄2″ (89 mm) tall.
Seat each rail fully. Clamp the frame square and use all three screws in each rail end: six rail screws per corner connector, 24 total at this level.
Center one 21″ support between the front and back rails. Its centerline is 24″ from either outer side of the frame. Keep its top level with the other lower rails.
Fit one RTA2Z angle at each end of the center support, as illustrated. Use four SD9112 screws into the long rail and four into the center support at each angle. Use the connector’s punched holes and specified screws.
Check before you move on
The lower frame measures 48″ × 24″ outside. Both diagonals match, all rails are seated, and the shelf support is level.
Step6
Phase B · Step 6 of 15

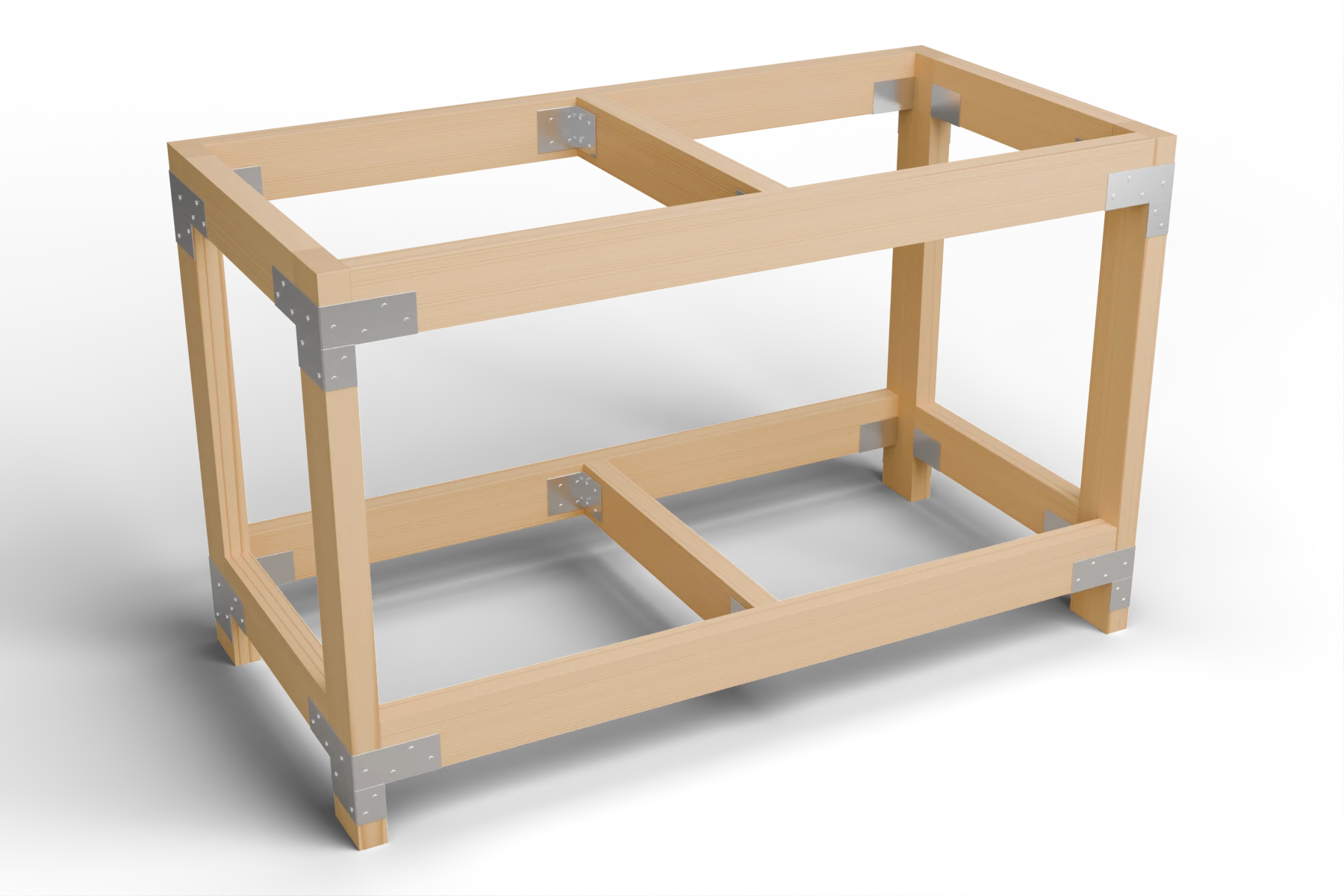

Step 6: Complete the upper frame
All upper surfaces must form one flat support plane.
All upper surfaces must form one flat support plane.
Parts
Upper front rail (UF) · Cut 45″ long · 2 × 4 stock
Upper back rail (UB) · Cut 45″ long · 2 × 4 stock
Upper left end rail (UL) · Cut 17″ long · 2 × 4 stock
Upper right end rail (UR) · Cut 17″ long · 2 × 4 stock
Upper center support (UC) · Cut 21″ long · 2 × 4 stock
Install the remaining long and end rails in the upper connectors. Use all six rail screws per corner connector: 24 screws for this level.
Add the second center support directly above the lower one. Attach it with the remaining two RTA2Z angles and 16 SD9112 screws.
Check the outside dimensions, compare both top diagonals, and check each face for square. Lay a straightedge across the posts, rails and center support. Correct any proud or low member before covering the frame.
Check before you move on
The frame does not rock, all upper bearing surfaces are flush, and no joint relies on an ordinary cabinet screw.
Step7
Phase B · Step 7 of 15
Step 7: Add the cabinet spacers
These thin strips keep the plywood clear of the metal connectors.
These thin strips keep the plywood clear of the metal connectors.
Use the labeled 1⁄4″ × 1 1⁄2″ (6 × 38 mm) solid pine strips. Position the vertical strips from 10″ to 22″ (254 to 559 mm) above the floor.
Center the horizontal strips on the lower and upper rails, following the spacer drawing. Keep every strip on clear wood between connectors. Do not put a spacer over a metal plate or screw head.
Fasten each strip with two #6 × 1″ flat-head wood screws. Drill 9⁄64″ clearance holes through the strip, then 3⁄32″ pilot holes 7⁄8″ deep into the frame. Countersink only enough to leave the heads flush.
Hold a straightedge across the strips. Confirm that the plywood will clear all metal. Correct a proud screw or poorly seated connector before proceeding.
Check before you move on
All 16 strips are secured with 32 screws. No covering panel will be pulled onto protruding metal.
Step8
Phase B · Step 8 of 15

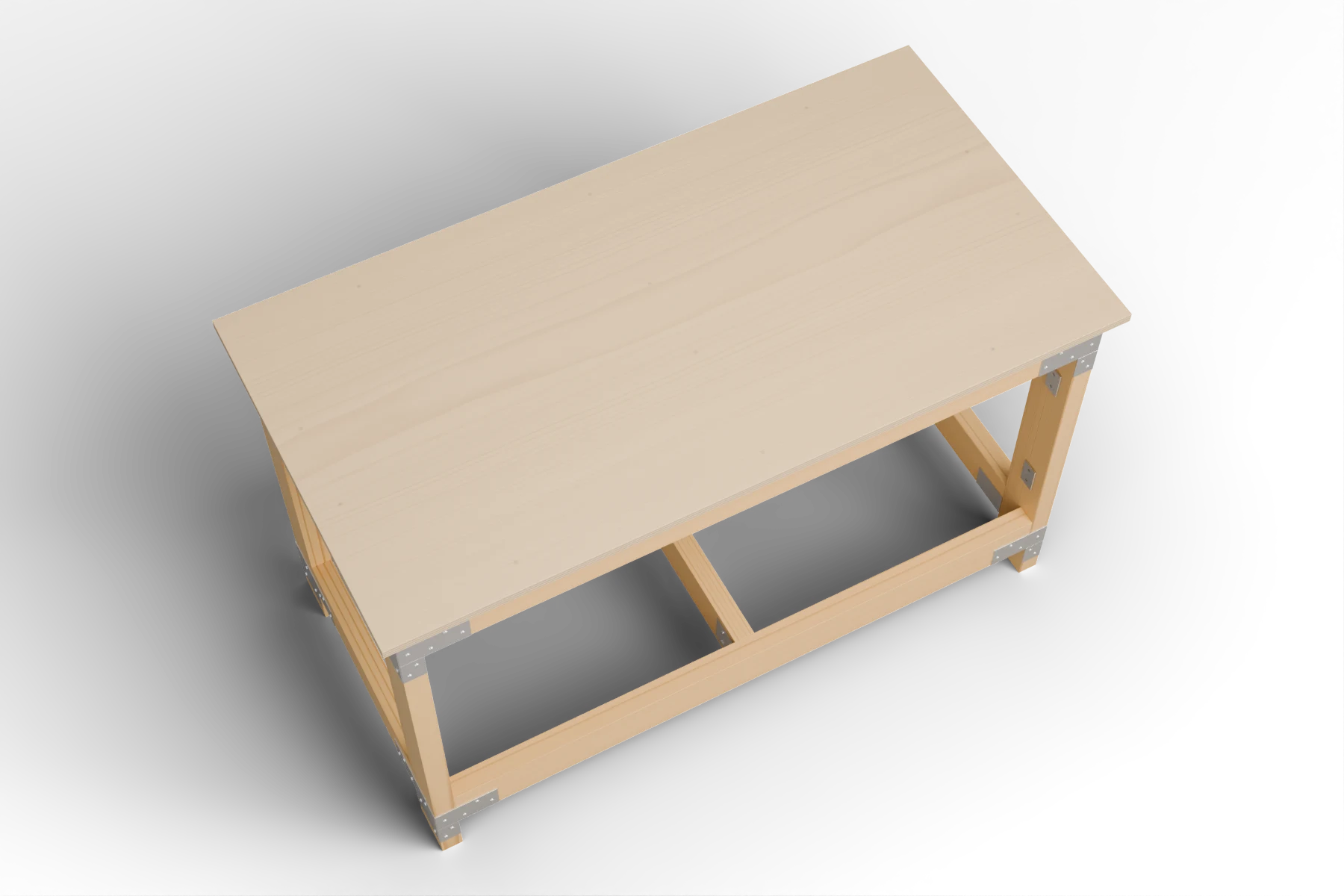

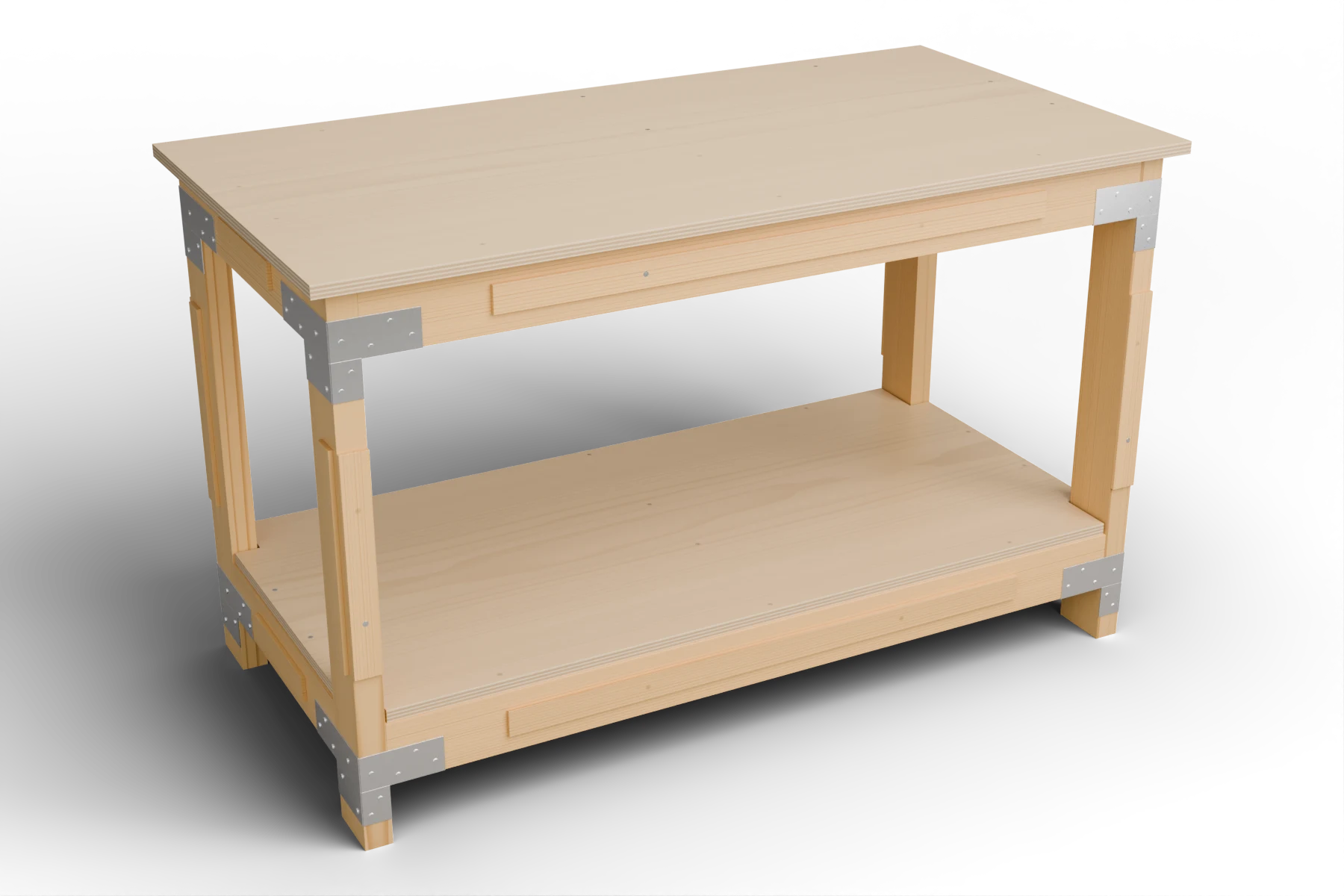

Step 8: Attach the shelf and the top
Keep the top fully supported and free of raised screw heads.
Keep the top fully supported and free of raised screw heads.
Full support top (TOP) · Cut 50″ × 26″ · 3/4-inch plywood
Lower the notched shelf onto the lower rails. Check the 1⁄8″ (3 mm) gaps around the posts and outer frame. Do not force it into place.
Center the tabletop with a 1″ (25 mm) overhang beyond the bare frame on all four sides. Clamp it securely.
Use the drawing’s 12 screw positions for each panel. Drill an 11⁄64″ clearance hole through the plywood, then a 7⁄64″ pilot hole 1 3⁄8″ into the rail. Fasten with #8 × 2″ flat-head screws and leave each head flush.
Run a straightedge across the finished top. A proud head, rocking panel or open bearing gap must be corrected before an enclosure goes on it.
Check before you move on
The shelf and top each have 12 screws, and the top bears evenly on the posts, rails and center support.
Step9
Phase B · Step 9 of 15

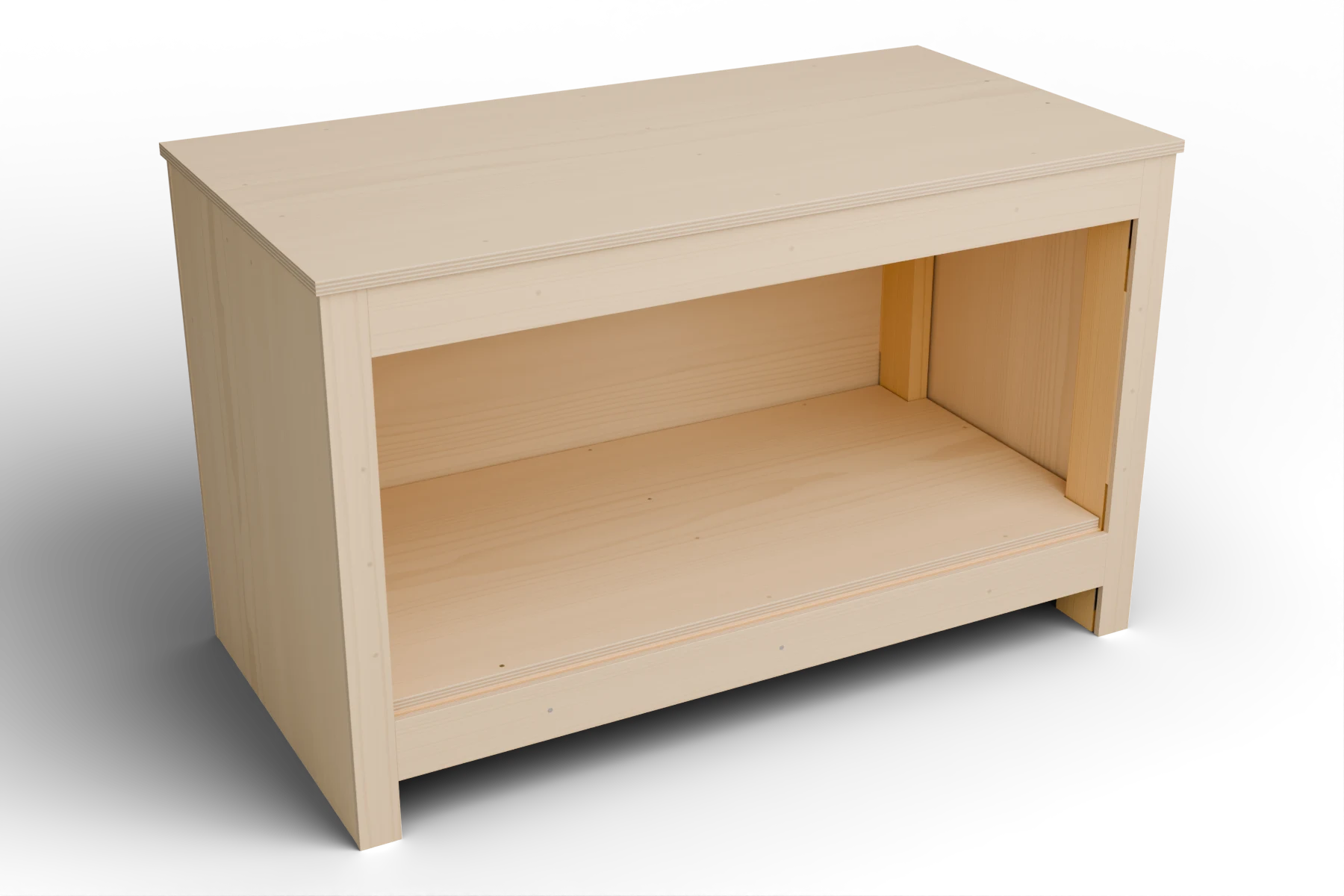

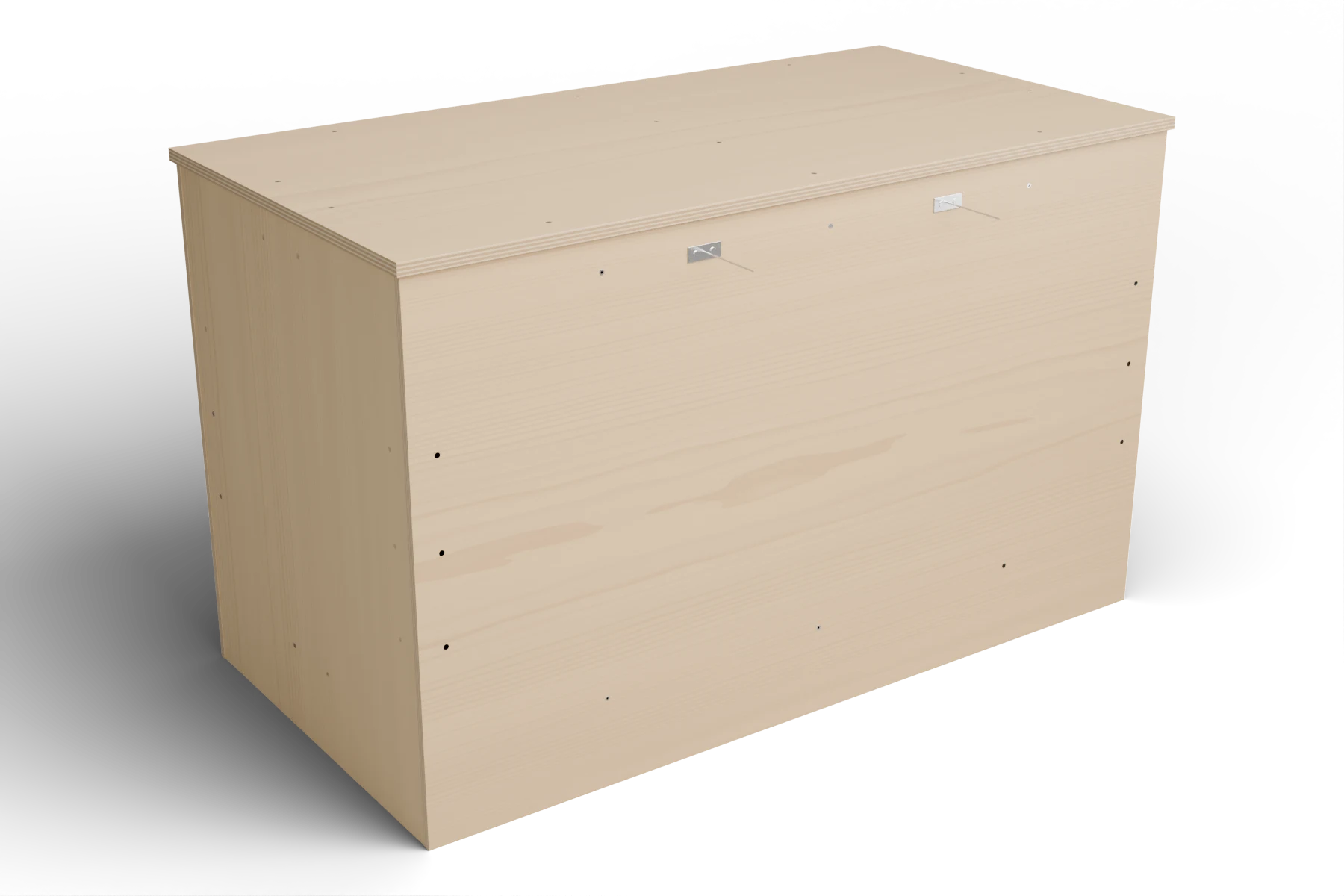

Step 9: Cover the cabinet frame
The back and side panels also keep the cabinet square.
The back and side panels also keep the cabinet square.
Use the marked positions and cut labels.
Use the marked positions and cut labels.
Use the marked positions and cut labels.
Parts
Left cabinet side (SL) · Cut 30″ × 24 1/2″ · 1/2-inch plywood
Right cabinet side (SR) · Cut 30″ × 24 1/2″ · 1/2-inch plywood
Keep the frame square while fitting both side panels and the full back. Place their lower edges level with the post bottoms. The back overlaps the ends of the side panels.
Fit the two front upright strips and the front rail covers. Their inside edges follow the bare frame opening; trim a small outside overhang flush with the side panels if the received plywood thickness requires it.
Use the panel screw drawing to mark fasteners over solid spacers. Drill 11⁄64″ clearance through the covering and spacer, then 7⁄64″ pilots 1 3⁄8″ into the frame. Install #8 × 2″ flat-head screws with flush heads.
Check the diagonals once more before tightening the last screws. Keep the full back and both sides in place; they are part of this design, not optional decoration.
Check before you move on
The cabinet remains square and every panel screw reaches solid framing.
Step10
Phase B · Step 10 of 15
Step 10: Sand and finish the wood
Finish the loose doors on both faces before hanging them.
Wait 7 days minimum full cure; longer outside label conditions
Finish the loose doors on both faces before hanging them.
Remove dust and gently ease exposed edges. Keep the top flat. Sand the doors equally on both faces and support them flat while finishing.
Apply Varathane Triple Thick satin with a synthetic brush, in one uniform coat along the grain. Follow the label’s preparation and application conditions; seal the exposed edges as well. Keep hinge cups and hardware seating surfaces clear of pooled finish.
Allow at least 7 days for full cure at the label’s reference conditions of about 70°F (21°C) and 50% relative humidity; cooler or more humid conditions need longer. Do not load the top or shelf before full cure.
Check before you move on
The finish is fully cured, the panels remain flat, and no hardware seating surface has pooled finish.
CSteps 11 to 15
Fit the doors and place the stand
Step11
Phase C · Step 11 of 15
Step 11: Drill the door cups and attach the hinges
Each door is 22 5⁄16″ × 19 1⁄4″ (567 × 489 mm). Mark its inside face and hinge edge before drilling. Measure the hinge centerlines 4″ and 15 1⁄4″ (102 and 387 mm) up from the bottom.
At each centerline, drill a 35 mm cup with a depth stop set to 13 mm. Leave 4 mm of wood between the cup edge and the door edge; the cup center is 21.5 mm from the edge. These metric sizes match the hinge and the 35 mm bit.
Clamp a backing board and keep the drill square. Practice the depth on scrap again before touching a finished door. Do not drill through the front face.
Seat each hinge, transfer its two factory mounting holes, and drill 3⁄32″ pilots 9⁄16″ deep into the door. Use two Blum 606N #6 × 5⁄8″ flat-head deep-thread wood screws per cup. Seat them in the factory screw recesses; do not countersink the metal.
Check before you move on
Both cups sit flat on each door, with no break-through, stripped holes or screw points.

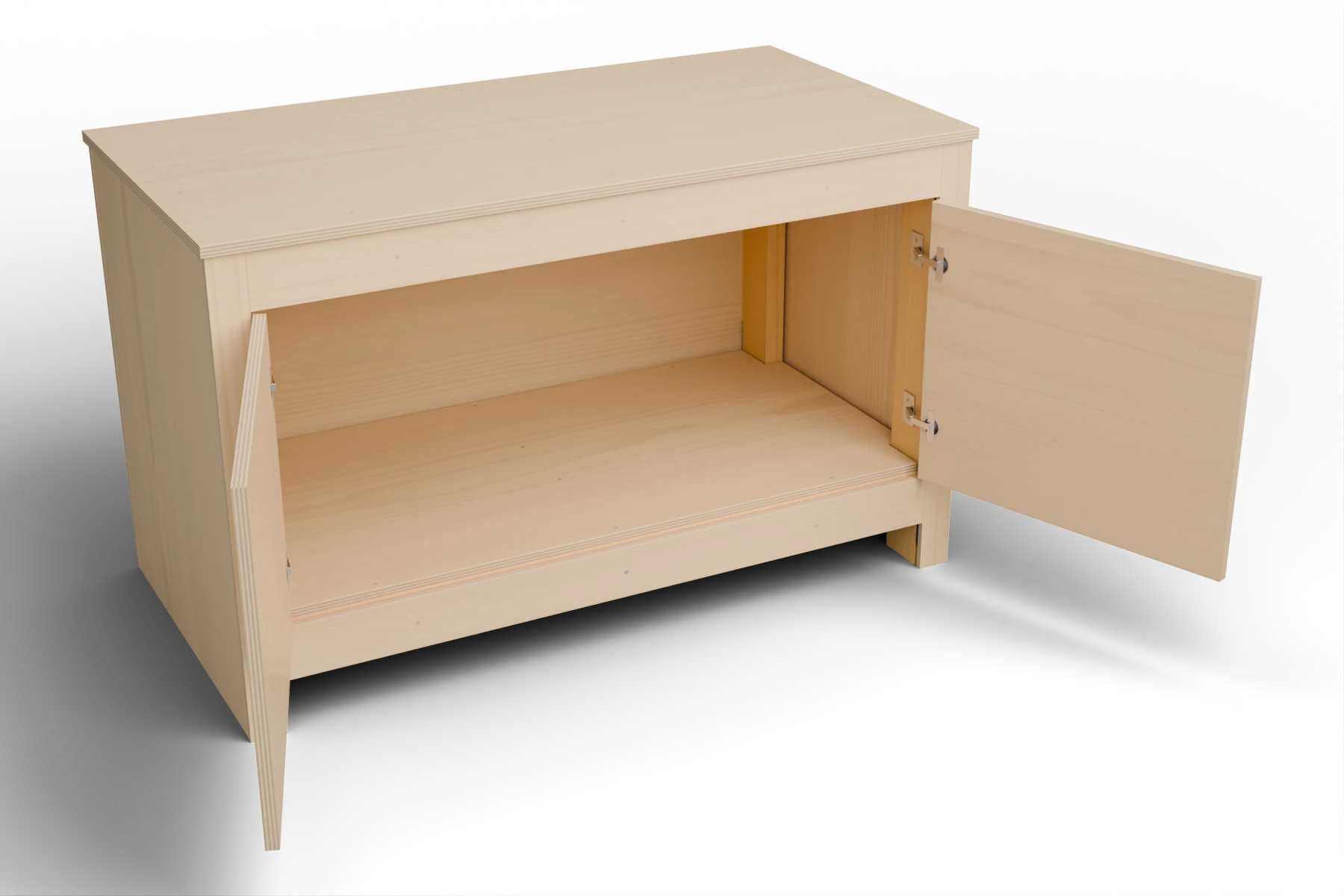

Use 1⁄8″ (3 mm) spacers below and beside the doors, including the gap between them. Have a helper support each door.
Mount the 0 mm Blum 173L6100 plates on the inside faces of the front posts. Align their centers with the two door hinge centers. Use the settings from the trial fit; the plate screw holes are 32 mm apart vertically.
For the reference stock in this guide, the screw-hole line is 38.5 mm behind the bare post’s front edge. If your covering, spacers or door thickness differ, transfer the working line from your scrap test instead of blindly using that reference.
Drill 3⁄32″ pilots 9⁄16″ deep and use two Blum 606N #6 × 5⁄8″ flat-head deep-thread wood screws per plate. Clip each hinge onto its plate. Use the hinge adjustments to make the fronts flush and the gaps even.

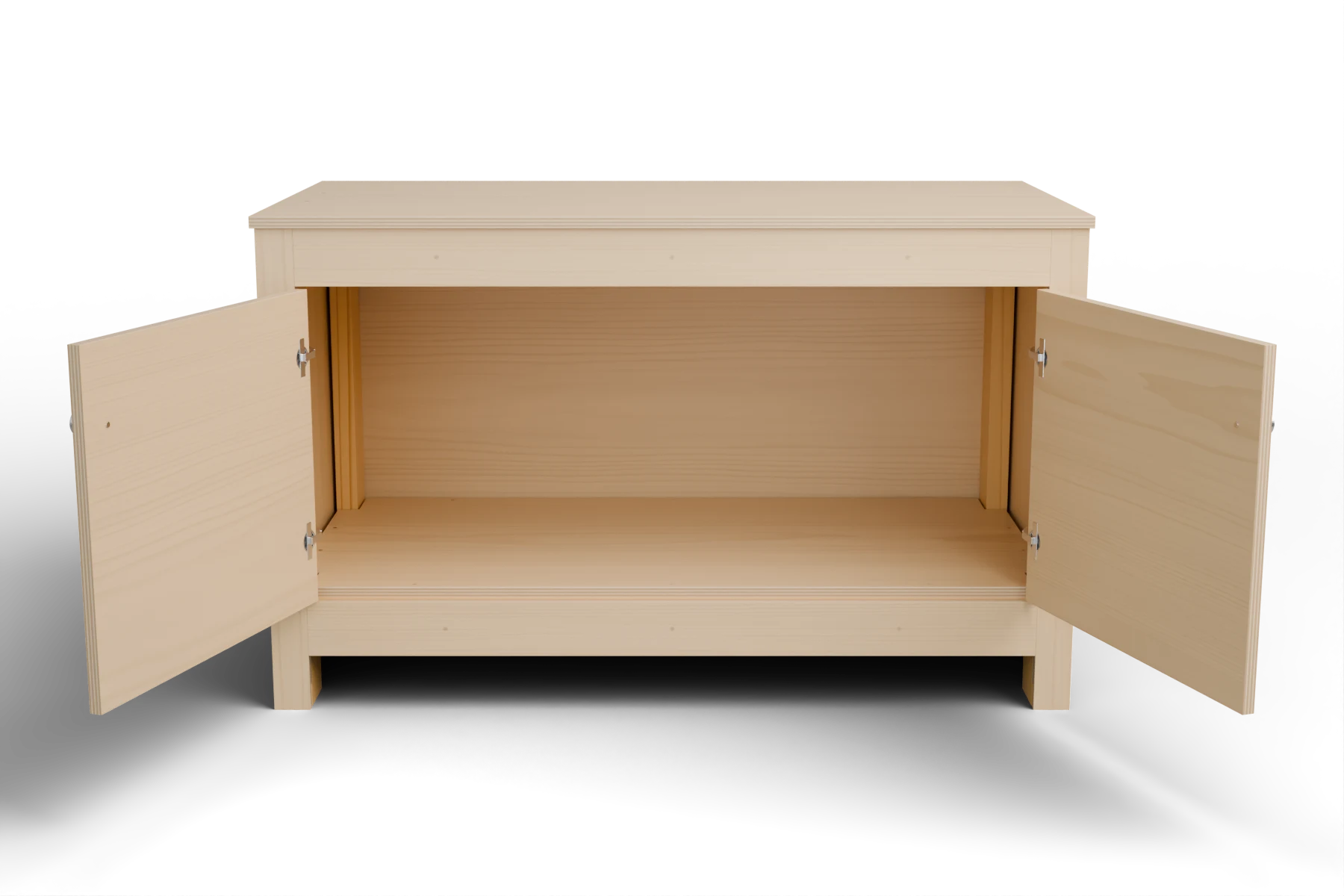

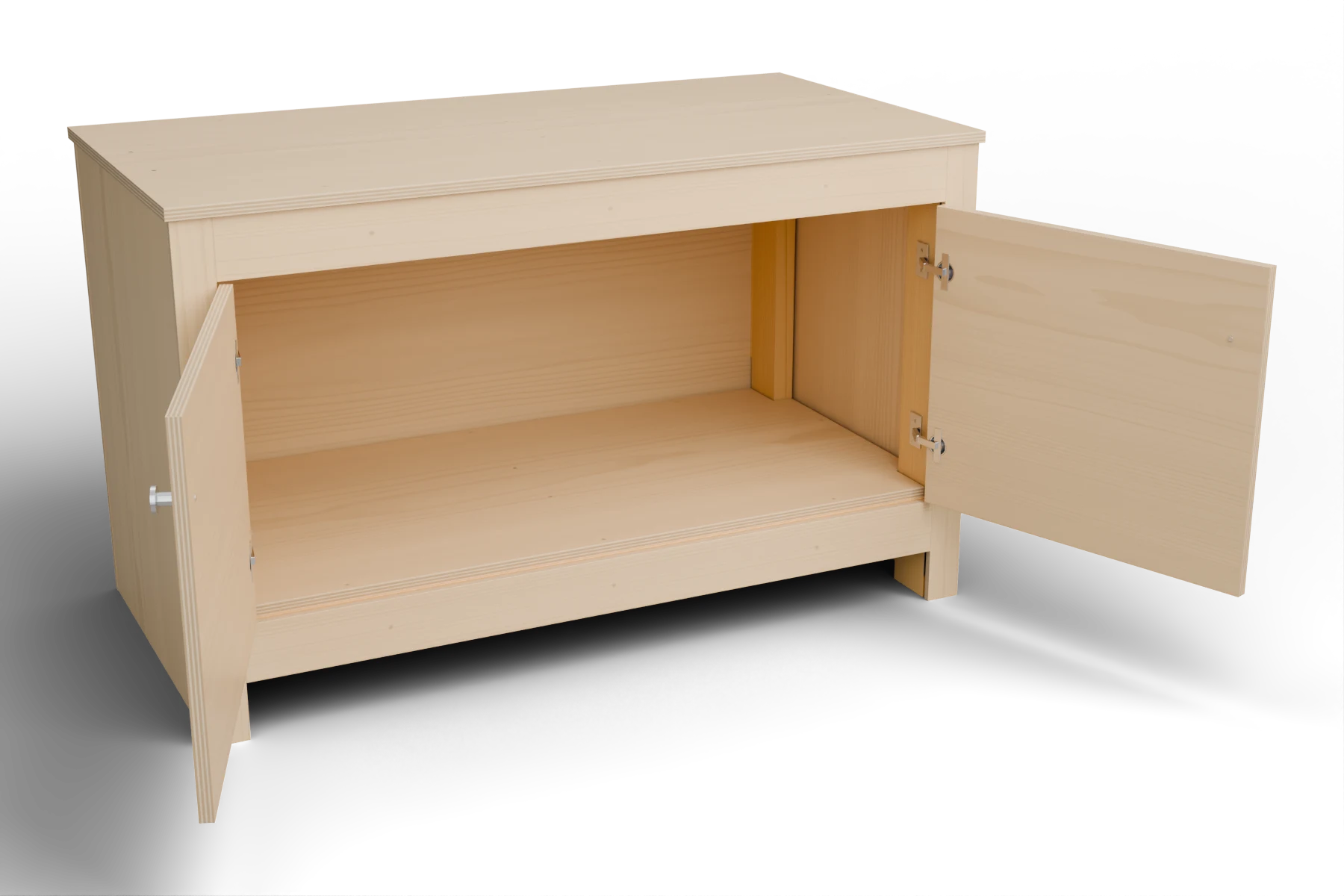

Slowly open both doors through their full travel. Check the edges, shelf, trim and knobs before using the soft-close action.
Check before you move on
Both doors open freely, close evenly and remain clipped to all four plates.
Step13
Phase C · Step 13 of 15
Step 13: Fit the two knobs
A simple pull opens each door without a key.
A simple pull opens each door without a key.
Mark each knob 2″ (51 mm) from the cabinet centerline, at 22″ (559 mm) above the floor. Check the mirrored positions before drilling.
Clamp a backing scrap to prevent splintering and drill a 3⁄16″ (5 mm) through-hole for the 8-32 machine screw. Fit the included 1″ screw from the inside and hand-tighten the knob.
Check that the screw engages the knob without bottoming out. Use the manufacturer’s appropriate screw length if your actual door thickness requires a different length.
Check before you move on
The knobs are secure and both doors operate without rubbing.
Step14
Phase C · Step 14 of 15
Step 14: Level and anchor the empty stand
Anchor it before loading or leaving the doors unattended.
Anchor it before loading or leaving the doors unattended.
Caution
Do not attach the restraints only to drywall or only to the thin back panel.
Place the empty stand in its final position. Use non-compressible shims under the full foot of a post if necessary; support all four posts and check for rocking. Do not support only the cabinet skins.
Fit two furniture-restraint brackets on the back, over the upper rail and its solid spacer. The drawing marks the bracket centers. Transfer the actual bracket holes within the marked solid backing area.
Use two #8 × 2″ pan-head screws per cabinet bracket. Drill clearance through the plywood and spacer, and 7⁄64″ pilots 1 3⁄8″ into the solid upper rail. Both screws must enter the rail, not just the plywood.
Locate sound wood wall studs and follow the restraint kit’s wall-bracket and pilot-hole instructions. This installation assumes up to 1⁄2″ drywall over wood studs. Connect and secure both cables, with little slack but without lifting the stand off the floor.
Check both locking pins and both wall connections by hand. Leave enough space behind the stand that the cables do not bend sharply over the tabletop edge.
Check before you move on
All four feet bear on the floor, both restraints are connected to studs, and the empty stand stays stable with either door open.
Step15
Phase C · Step 15 of 15
Step 15: Place the enclosure and make the final checks
Load gradually and keep the weight spread across the flat base.
Load gradually and keep the weight spread across the flat base.
Recheck the enclosure-and-contents weight against the planning scope before lifting. With enough helpers for the actual weight, place the empty enclosure centrally on the stand.
Confirm that its entire required base is supported, the tabletop remains flat and all four feet still bear firmly. Add furnishings and substrate gradually, spread across the floor.
Open and close the cabinet doors after loading. Stop and unload if the top sags, joints move, doors begin rubbing, a post lifts, or the stand rocks. Do not fix movement by merely tightening a door adjustment.
Check screws, connections, surface condition and restraints regularly and after moving the setup. Remove the enclosure before moving the stand.
Check before you move on
The loaded stand is stable, the doors work normally, and the enclosure’s own support, restraint and equipment checks are complete.
After the build
Taking a door off and putting it back
Support the door before releasing either hinge.
Open the door and have a helper hold its weight.
Release the clip at the rear of each hinge arm, following Blum’s drawing. Keep fingers clear of the hinge mechanism.
To reinstall, seat the front of each hinge on its plate and press the rear until it clicks. Pull gently to confirm both clips have latched.
Final checks and regular inspection
Cleaning and care
Wipe spills promptly with a soft damp cloth and dry the surface.
Do not hose the cabinet or leave standing water on the shelf.
Unload and investigate swelling, splits, loosened fasteners, movement or persistent door misalignment.
Reference
Material references and the limits of the design review.
2 notesStock and fit
The plywood reference thicknesses are 0.703″ and 0.453″, from Georgia-Pacific. They are material specifications, not extra saw-cut instructions. Measure the received sheets and repeat the hinge trial if the stack differs.
Use the original hardware’s factory holes. Connector and hinge shapes in the model explain assembly; they are not drilling templates or manufacturer CAD.
2 notesWhat the load review covers
The planning ceiling assumes a centered, flat enclosure base with evenly distributed weight, dry No. 2 Southern Pine, Group 1 plywood, every specified connector screw, full cabinet sides/back and installed wall restraints.
The review checks the upper rails, plywood and connector reactions. It does not certify the finished stand, workmanship, floor or wall attachment. No aquarium or stacking approval is implied.
